Screw Ship Unloaders: A Comprehensive Guide to Efficient Bulk Handling

In the world of bulk material handling, efficiency, reliability, and material integrity are paramount. Among the various technologies available, the screw ship unloader stands out as a robust and versatile solution for discharging dry bulk commodities from vessels. This guide delves deep into the mechanics, benefits, and strategic applications of this essential equipment, providing you with the knowledge to optimize your port operations.

What is a Screw Ship Unloader? Understanding the Core Mechanism

A screw ship unloader is a fixed or mobile machine designed to efficiently unload bulk solid materials like grains, fertilizers, cement, and coal from the holds of ships. Its operation is centered around a rotating helical screw, known as a screw conveyor or auger, which acts as the primary material-moving component. The machine is typically mounted on a gantry or a mobile harbor crane, allowing it to traverse the ship's hold for complete clearance.

• Primary Component: The heart of the system is the large, rotating screw (auger) that digs into the material pile.
• Material Flow: As the screw rotates, it pulls material towards the center, where it is lifted vertically and conveyed to a discharge point connected to a belt conveyor system.
• Versatility: These unloaders can be configured with various screw designs to handle everything from free-flowing grains to more cohesive materials.

The Working Principle of a Screw Type Ship Unloader

The screw type ship unloader working principle is elegantly simple yet highly effective. It combines rotational and linear motion to move material consistently. The process begins with the slewing and luffing of the unloader's boom to position the screw head directly into the material. Once engaged, the screw's rotation draws the bulk solid inward and upward through the enclosed casing, preventing spillage and dust emission.

• Digging and Feeding: The specially designed head of the screw penetrates the material pile, ensuring a continuous feed.
• Enclosed Conveying: Material is transported within a sealed tube, minimizing dust pollution and product loss.
• Vertical Elevation: The system efficiently elevates the material from the deep ship hold to the elevated discharge boom.

Key Advantages of Using Screw Conveyor Ship Unloaders

Choosing the right unloading technology directly impacts operational cost, speed, and environmental compliance. The advantages of screw conveyor ship unloaders are numerous, making them a preferred choice for many specific applications. Their enclosed design and mechanical operation offer distinct benefits over other systems.

• Dust-Free Operation: The fully enclosed conveying system significantly reduces dust generation, ensuring a cleaner and safer work environment and complying with strict environmental regulations.
• Gentle Material Handling: Compared to grab buckets, the screw action is relatively gentle on fragile materials, reducing degradation and product loss.
• High Efficiency for Specific Materials: They offer highly efficient and consistent discharge rates for a wide range of free-flowing to semi-free-flowing bulk solids.
• Self-Cleaning: The design typically allows for good self-cleaning, reducing cross-contamination when switching between different materials.

Operational Efficiency and Material Preservation

The efficiency of a screw unloader is not just about speed; it's about controlled and reliable throughput. By providing a steady, continuous flow of material, these unloaders prevent bottlenecks in the downstream logistics chain. Furthermore, the gentle handling preserves the physical properties of sensitive materials, such as cereal grains or plastic pellets, maintaining their value.

Critical Maintenance for Your Ship Unloader Screw Conveyor

To ensure longevity and minimize costly downtime, a proactive maintenance regime is essential. The most intensive maintenance activities for this equipment focus on the ship unloader screw conveyor itself, as it is subject to significant wear and tear from constant contact with abrasive materials.

• Regular Inspection: Implement a schedule for inspecting the screw flighting, trough lining, and bearings for signs of wear.
• Lubrication: Adhere strictly to the manufacturer's lubrication schedule for all bearings and gearboxes.
• Alignment Checks: Regularly check the alignment of the screw sections to prevent binding and excessive power consumption.

Common Wear Parts and Inspection Checklist

Understanding which components wear out fastest allows for better inventory planning and predictive maintenance. The key to effective screw ship unloader maintenance is a systematic approach.

• Screw Flighting: The edges of the screw flights wear down over time, reducing efficiency.
• Trough Liner: The bottom part of the casing experiences the most friction and requires periodic replacement.
• Hanger Bearings: In longer screws, intermediate hanger bearings support the weight and are critical failure points.

Screw Ship Unloader vs Pneumatic Unloader: Making the Right Choice

Selecting between a mechanical unloader like the screw type and a pneumatic system is a critical decision. The debate of screw ship unloader vs pneumatic unloader hinges on the material characteristics, required throughput, and infrastructural considerations. Each system has its own ideal application domain.

The following table provides a clear comparison to help guide this important decision.

Diverse Applications of Screw Ship Unloaders in Modern Industry

The robustness and versatility of this technology make it suitable for a wide array of sectors. The applications of screw ship unloaders span across industries where bulk materials are a key component of the supply chain.

• Agriculture and Grain: Ideal for unloading wheat, corn, soybeans, and other grains with minimal damage.
• Construction Materials: Efficiently handles cement, clinker, and gypsum at import terminals and production facilities.
• Energy Sector: Used for unloading coal and biomass fuels for power plants.
• Chemical and Fertilizer: Handles various fertilizers and industrial chemicals in a contained, dust-controlled manner.

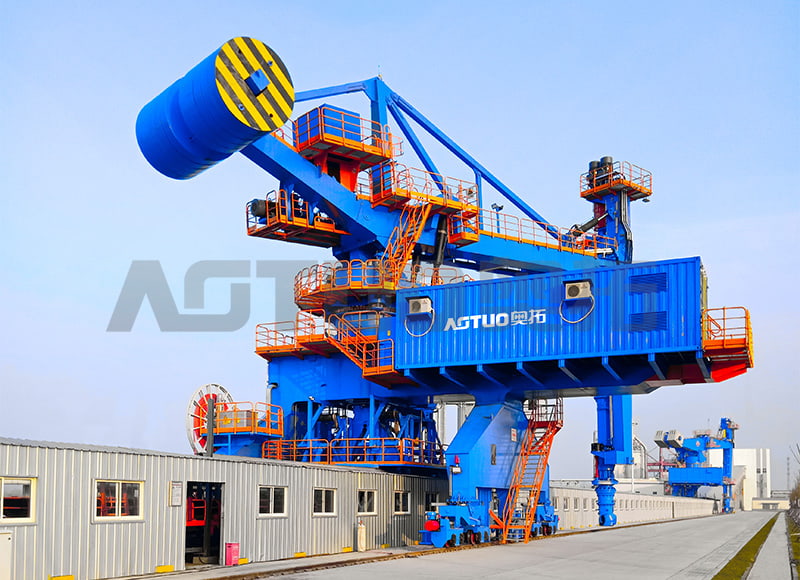

 500-200000 DWT 200-3000t/h Rail Mobile Screw Coal Ship Unloader

FAQ

What types of materials are best suited for a screw ship unloader?

Screw ship unloaders are exceptionally well-suited for free-flowing and semi-free-flowing dry bulk materials. This includes agricultural products like grains and seeds, construction materials such as cement and gypsum, and certain types of coal and fertilizers. They are less ideal for very sticky, cohesive, or highly abrasive materials without specific design modifications, as these can cause rapid wear or clogging.

How does the unloading rate of a screw unloader compare to a grab unloader?

The unloading rate is highly dependent on the material and the specific machine size. Generally, large grab unloaders can have a higher peak capacity for very dense materials like iron ore. However, for consistent, continuous throughput of medium-density materials, a screw type ship unloader can be highly competitive. Its continuous operation often leads to a higher average unloading rate over time compared to the cyclical nature of a grab bucket, with the added benefit of superior dust control.

What are the most common maintenance challenges with the screw conveyor?

The primary screw ship unloader maintenance challenges revolve around wear. The screw flighting, especially at the intake end, wears down from abrasion. Intermediate hanger bearings can fail if not lubricated properly or if seal failure allows material ingress. Regular inspection and using wear-resistant materials or hard-facing on the screw flights are key strategies to mitigate these challenges and extend the component's service life.

Are screw ship unloaders environmentally friendly?

Yes, this is one of their significant advantages. The fully enclosed nature of the screw conveyor ship unloader system makes it one of the most environmentally friendly mechanical unloading options available. It effectively contains dust within the system, preventing its release into the atmosphere and the surrounding water, which is a major concern in port areas. This helps operators meet stringent environmental and workplace safety standards.
