Screw Ship Unloader Blockage Risk and Countermeasures in High-Water-Containing Materials

The Screw Ship Unloader is a critical piece of equipment in dry bulk material handling, renowned for its efficiency and enclosed, environmentally friendly operation. However, when dealing with materials possessing high water content, these systems face significant challenges, primarily the risk of blockage. This article delves deep into the mechanics of blockage formation, its operational and financial impacts, and presents a comprehensive set of countermeasures. By understanding the causes of screw conveyor blockage and implementing robust screw unloader anti-clogging designs, operators can ensure continuous, efficient, and cost-effective port operations.

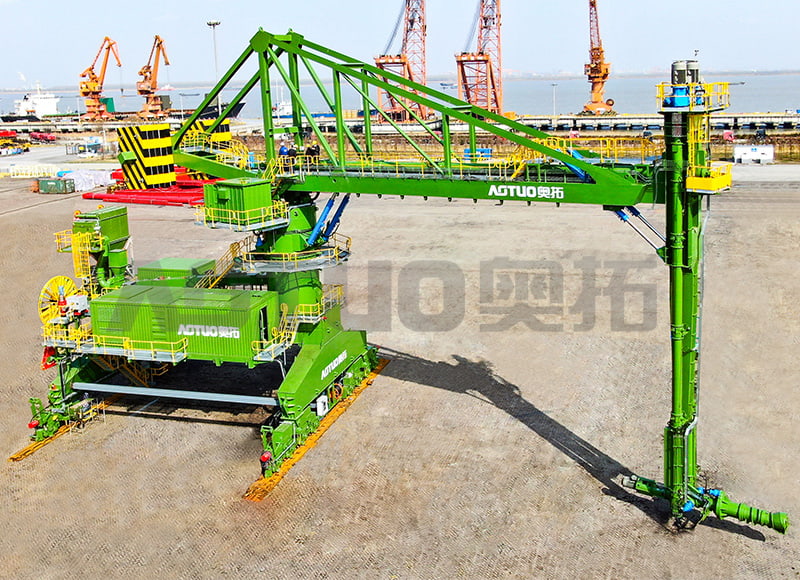

1000-70000 DWT 200-1500t/h Rail mobile Screw Ship Unloader

Understanding the Blockage Challenge in Screw Unloaders

At its core, a screw ship unloader moves bulk material via a rotating helical screw enclosed within a trough. This mechanism is highly effective for free-flowing dry materials. However, materials with high moisture content behave differently. The presence of excess water acts as a binding agent, increasing the material's cohesion and adhesion. This leads to a phenomenon known as "arching" or "bridging," where the material forms a stable, self-supporting structure within the conveyor trough, halting the flow entirely. Furthermore, sticky materials can build up on the screw flight and the inner wall of the trough, gradually reducing the cross-sectional area available for material passage until a complete blockage occurs. This is a primary reason for screw conveyor jam in maritime logistics.

• Material Adhesion: Moist particles stick to metal surfaces, creating a layer that builds up over time.
• Reduced Flowability: High moisture compromises the internal friction of the material, preventing it from flowing like a fluid.
• Increased Torque Demand: The screw motor has to work harder to push the cohesive mass, leading to potential overload and equipment shutdown.

Key Risks Associated with Unloader Blockages

Beyond the immediate halt in operations, blockages pose a multi-faceted threat to port productivity and equipment integrity. The repercussions extend from direct financial losses to long-term capital expenditure.

• Operational Downtime: Every minute a unloader is blocked is a minute of lost unloading capacity, causing vessel demurrage and port congestion.
• Equipment Damage: Severe blockages can lead to the twisting and shearing of the screw shaft, damage to the gearbox, or burnout of the drive motor.
• Increased Maintenance Costs: Frequent jamming necessitates intensive labor for clearing, along with higher wear and tear on components, spiking maintenance budgets.
• Safety Hazards: The procedures for clearing blockages often involve manual intervention in confined spaces, posing significant safety risks to personnel.

Comparative Analysis: Dry vs. High-Moisture Material Handling

To fully grasp the impact, it is useful to compare the operational parameters when handling dry materials versus high-moisture materials. The differences highlight why standard unloaders struggle and require specific modifications.

Proactive Countermeasures and Anti-Clogging Designs

Preventing blockages requires a proactive approach, integrating both equipment design features and operational best practices. Modern screw unloader anti-clogging designs are the result of extensive engineering and field experience.

• Specialized Trough and Flight Design: Using U-shaped or tubular troughs with minimal internal ledges reduces material accumulation. Non-stick coatings or liners (e.g., UHMW-PE) can be applied to critical surfaces.
• Variable Speed Drives (VSD): Allowing the screw speed to be adjusted based on material flow and motor torque enables the system to "feel" a potential blockage and reverse or adjust speed to clear it.
• Integrated Breaker Bars and Agitators: Installing devices that disrupt the formation of stable arches within the hopper or feed zone is a highly effective mechanical solution.
• Advanced Monitoring Systems: Installing sensors for torque, vibration, and power consumption provides real-time data. A sudden spike in torque is a clear early warning of an impending jam.

Optimizing Operation for High-Moisture Cargo

Even with a well-designed unloader, operational protocol is key. Proper procedures can mitigate the inherent challenges of wet materials, ensuring a smoother handling wet bulk cargo screw unloader process.

• Pre-Unloading Material Assessment: If possible, test the moisture content of the cargo before unloading to adjust operational parameters proactively.
• Controlled Feed Rate: Avoid running the unloader at full capacity. A slower, controlled feed rate gives the material less opportunity to compact and block.
• Sequential Hopper Emptying: For unloaders with multiple intake points, ensure one hopper is nearly empty before switching to the next to prevent material settling and compaction.

Maintenance Strategies to Minimize Downtime

A robust maintenance regimen is not just about fixing problems but preventing them. For a maintenance guide for spiral ship unloader, the focus should be on predictive and preventative strategies tailored to abrasive and sticky materials.

• Regular Inspection of Wear Parts: Schedule frequent checks of the screw flight, trough liner, and bearings. Replace components before they fail to prevent a cascade of other issues.
• Strict Lubrication Schedule: Follow the manufacturer's guidelines for lubricating bearings and gearboxes to prevent failures that could be mistaken for or cause blockages.
• Cleanliness Protocols: Implement a strict cleaning procedure after handling sticky materials to prevent residue from hardening and causing the next blockage.

Clearing a Blockage: Best Practice Procedure

When a blockage does occur, a systematic and safe procedure is essential. This is a critical part of the troubleshooting screw ship unloader issues protocol.

• Step 1: Immediate Shutdown: Safely and immediately stop the unloader and lock out the power source to prevent accidental startup.
• Step 2: Attempt Controlled Reversal: If the system is equipped with a reversible drive, attempt to run the screw in reverse for short bursts to dislodge the blockage.
• Step 3: Manual Inspection and Access: Use designated inspection ports to visually locate the blockage. Never attempt to poke or clear a blockage while the machinery is in motion.
• Step 4: Use Proper Tools: Use non-sparking, approved tools to carefully break up and remove the compacted material from the access points.

Technological Innovations and the Role of Specialized Manufacturers

The fight against unloader blockages is driving innovation. Companies with deep domain expertise, such as Hangzhou Aotuo Mechanical and Electrical Co., Ltd. (AOTUO), are at the forefront. With 20 years of R&D experience and over 100 patents, AOTUO has been a pioneer in the localization of bulk cement screw unloaders and a drafting unit for industry standards. Their focus on environmentally friendly and efficient screw unloaders involves integrating intelligent control systems that can predict and prevent blockages, and designing equipment specifically tested for challenging materials, with unloading capacities reaching up to 3000t/h. This level of specialization is crucial for developing effective screw unloader anti-clogging designs that meet modern port demands.

• Intelligent Control Systems: Using AI and machine learning algorithms to analyze operational data and predict failure points before they cause a stoppage.
• Advanced Material Science: Developing and applying new, more durable, and lower-friction liner materials to resist material build-up.
• Modular and Accessible Design: Designing unloaders with easy access to critical areas for faster and safer inspection and maintenance, directly reducing downtime.

FAQ

What are the most common signs of an impending screw unloader blockage?

The most common early warning signs are auditory and operational. A change in sound, such as the motor laboring or a rumbling noise, often precedes a jam. Operationally, a noticeable drop in the material discharge rate while the screw is still running indicates a flow problem. Modern monitoring systems can detect more subtle signs, like a steady increase in motor amperage (torque) which signals that the screw is working against increasing resistance, a key reason for screw conveyor jam.

Can a standard screw unloader be modified to handle high-moisture materials?

Yes, to a significant extent. Retrofitting is a viable option for many existing Screw Ship Unloader systems. Common modifications include installing variable frequency drives (VFDs) to allow for speed control and reversal, adding liner kits to the trough to reduce adhesion, and integrating mechanical agitators or vibrators in the feed hopper. Upgrading the control system with torque monitoring sensors can also provide critical data for operators. However, the feasibility and cost-effectiveness depend on the original design of the unloader, and consulting with a specialist manufacturer like AOTUO is highly recommended.

How does the design of a screw unloader for wet cargo differ from a standard one?

A unloader designed specifically for handling wet bulk cargo screw unloader applications incorporates several key differences. The screw unloader anti-clogging designs often feature a larger clearance between the screw flight and the trough to accommodate material build-up without jamming. They use specialized, low-friction liner materials and may have a steeper incline to assist material flow. The screw itself might have a modified pitch or flight design to break up agglomerations. Crucially, they are equipped with more powerful drives and robust gearboxes to handle the higher torque demands and are integrated with sophisticated control systems for proactive management.

What is the single most important maintenance task to prevent blockages?

While a comprehensive approach is necessary, the single most critical task is thorough cleaning after processing sticky, high-moisture materials. Allowing residue to harden inside the trough, on the screw, or in the hopper creates nucleation points for the next blockage. A rigorous post-operation cleaning protocol, as outlined in any detailed maintenance guide for spiral ship unloader, is the most effective preventative measure against recurrent jamming and is fundamental to reliable long-term operation.
