Screw Ship Unloader: An In-Depth Guide to Efficient Bulk Material Handling

The efficient transfer of bulk materials from ship to shore is a critical operation in global trade and industrial production. Among the various technologies available, the screw ship unloader stands out for its reliability, cleanliness, and continuous operation. This comprehensive guide delves deep into the mechanics, benefits, and operational nuances of this essential equipment, providing valuable insights for port operators, plant managers, and industry professionals.

What is a Screw Ship Unloader? The Core of Continuous Unloading

A screw ship unloader is a stationary or mobile machine designed to continuously extract bulk solid materials like grains, fertilizers, cement, and coal from the holds of ships. Unlike cyclical methods, it operates without interruption, using a rotating screw enclosed within a tube to move material vertically and horizontally to a designated discharge point. This system is renowned for its ability to handle a wide range of materials with minimal spillage and dust generation.

• Primary Function: To automate and streamline the ship unloading process, reducing turnaround time and labor costs.
• Key Components: Typically includes an intake boom, a vertical screw elevator, a horizontal screw conveyor, a slewing mechanism, and a discharge chute.
• Ideal Applications: Commonly used in ports, power plants, and any facility that receives large volumes of dry bulk commodities.

Key Advantages of Screw Type Ship Unloader: Why Choose This System?

Choosing the right unloading technology has a direct impact on operational cost, efficiency, and environmental compliance. The advantages of screw type ship unloader systems are numerous and make them a preferred choice in many scenarios.

Unmatched Efficiency and Dust Control

The fully enclosed design of the screw conveyor is pivotal in containing dust and preventing material loss. This is a significant operational and environmental benefit.

• Dust-Free Operation: The enclosed tube ensures that fine particles are not released into the atmosphere, protecting the environment and worker health, and complying with strict air quality regulations.
• Continuous Material Flow: Provides a steady, non-pulsating discharge of material, which simplifies downstream processes like belt conveying and storage silo filling.
• High Efficiency: By eliminating the empty return cycles common in grab systems, it achieves a higher average unloading rate, leading to faster ship turnaround.

Gentle Handling and Material Integrity

For materials that are fragile or prone to degradation, the gentle handling characteristic of screw unloaders is a major advantage.

• Reduced Product Damage: The controlled movement within the screw minimizes impact and attrition, preserving the quality and value of materials like grains and plastic pellets.
• Low Noise Pollution: Operates significantly quieter than pneumatic or grab-based unloaders, contributing to a better working environment and community relations.
• Self-Cleaning Ability: The action of the screw typically leaves very little residual material in the system, reducing cross-contamination when switching between different products.

Understanding the Screw Ship Unloader Working Principle

Grasping the screw ship unloader working principle is key to appreciating its efficiency. The process is a seamless combination of mechanical movements that work in harmony.

The Intake and Vertical Lifting Mechanism

The process begins at the intake end, which is lowered into the ship's hold. The material is drawn into the system and immediately elevated.

• Material Intake: A specially designed intake head, often with paddles or a feeder, guides the material into the mouth of the vertical screw.
• Vertical Transportation: A large-diameter vertical screw (or a series of them) rotates, using centrifugal force and friction to lift the material vertically out of the ship's hold. The material is effectively "locked" within the flights of the screw, preventing backflow.

The Horizontal Conveying and Discharge Process

Once the material is lifted to the required height, it is transferred to the horizontal section for final discharge.

• Transfer Point: At the top of the vertical lift, the material is fed into a horizontal screw conveyor enclosed in a tube.
• Slewing and Luffing: The entire boom can slew (rotate) and luff (raise/lower) to cover the entire hold area, ensuring complete emptying without requiring the ship to shift position.
• Final Discharge: The horizontal conveyor carries the material to a discharge point, which connects to a shore-based conveyor system or storage facility.

Critical Factors in Screw Ship Unloader Capacity Calculation

Accurate screw ship unloader capacity calculation is essential for system design, selection, and operational planning. Capacity is not a single fixed value but depends on several interacting variables.

Key Variables Affecting Unloading Rate

The theoretical capacity must be adjusted for real-world conditions to determine the practical average unloading rate.

• Screw Diameter and Pitch: Larger diameters and pitches can move a greater volume of material per revolution.
• Rotational Speed (RPM): The speed of the screw directly influences the volumetric flow rate.
• Bulk Density of Material: Heavier materials (e.g., iron ore) will result in a higher mass flow rate than lighter materials (e.g., barley) for the same volumetric capacity.
• Loading Coefficient (Fill Factor): This accounts for the fact that the screw is never 100% full. It varies with material characteristics and inclination.
• Machine Availability and Mobility: Time lost during boom movement, ship positioning, and mechanical delays must be factored into the overall operational capacity.

A Simplified Calculation Example

The basic formula for theoretical volumetric capacity (Qv) is: Qv = (π/4) * D² * p * n * ψ * 60, where D is screw diameter, p is pitch, n is RPM, and ψ is the loading coefficient. To find mass capacity (Qm), multiply Qv by the material's bulk density (ρ).

Screw Conveyor vs Grab Ship Unloader: A Detailed Comparison

The debate between screw conveyor vs grab ship unloader is central to selecting the right equipment. Each has its strengths, and the optimal choice depends on specific operational requirements.

Operational and Environmental Differences

The fundamental difference lies in their mode of operation: continuous versus cyclical.

• Screw Unloader: Offers a continuous, enclosed flow. It is superior in dust control, gentle handling, and energy efficiency per ton unloaded.
• Grab Unloader: Operates in a grab-lift-travel-dump cycle. It is highly versatile, capable of handling a very wide range of materials (including large lumps and scrap) and can easily clean corners of a hold.

Comparative Analysis Table

Essential Maintenance of Screw Ship Unloader for Longevity

Proactive and systematic maintenance of screw ship unloader equipment is non-negotiable for maximizing uptime, ensuring safety, and controlling long-term costs.

Routine and Preventive Maintenance Checklist

A disciplined approach to maintenance prevents minor issues from escalating into major failures.

• Daily Inspections: Check for unusual noises, vibrations, and visible damage to the screw flighting or casing. Inspect lubricant levels and look for any signs of leakage.
• Weekly/Greasing Regime: Lubricate all bearings, slewing rings, and gearboxes according to the manufacturer's specifications. Over-greasing can be as harmful as under-greasing.
• Monthly Checks: Inspect drive belts or chains for tension and wear. Check electrical connections and motor performance. Verify the alignment of all conveyor sections.

Common Wear Parts and Inspection Points

Certain components are subject to higher stress and will require periodic replacement.

• Screw Flighting: The leading edge of the screw flight is subject to abrasion and may need hard-facing or replacement over time.
• Hanger Bearings: In long horizontal runs, intermediate hanger bearings support the screw. These are critical wear points and must be monitored closely.
• Inlet Hopper Liners: The area where material first enters is prone to wear. Replaceable wear plates or liners are used here.
• Drive Couplings and Gearboxes: Regular oil analysis and vibration monitoring can predict failures in these high-cost components.

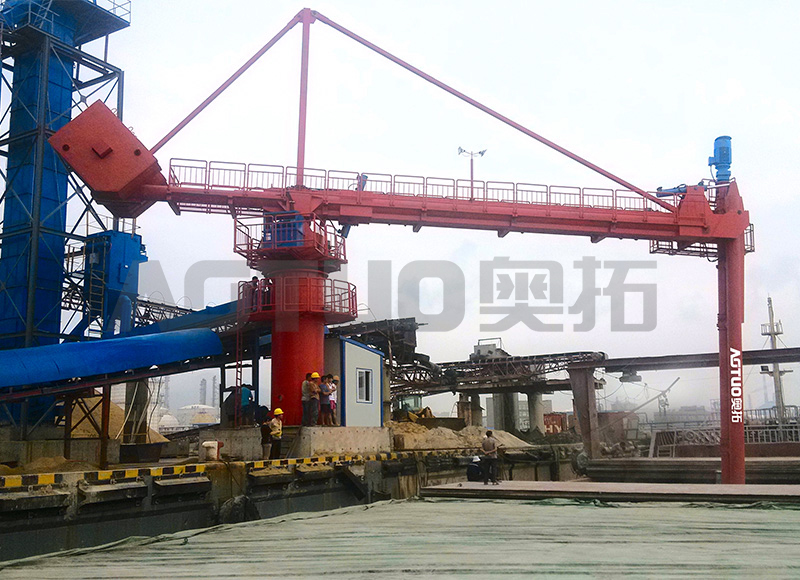

 600-15000 DWT 100-500t/h Fixed Screw Ship Unloader

FAQ

What types of materials can a screw ship unloader handle?

Screw ship unloaders are highly versatile but are best suited for free-flowing, powdered, granular, or small-lump materials. Common applications include unloading cereals (wheat, corn, barley), oilseeds, fertilizers, cement, clinker, alumina, and certain types of coal. They are not suitable for very large, lumpy, highly abrasive, or sticky materials that could cause blockages or excessive wear.

What is the typical unloading capacity of a screw ship unloader?

The capacity of a screw ship unloader varies significantly based on its size and the material being handled. Smaller units may have capacities from 100 to 300 tons per hour, while large, dedicated port unloaders for commodities like grain can achieve rates exceeding 1,000 tons per hour. Accurate screw ship unloader capacity calculation is necessary to match the machine to the specific requirement, considering factors like bulk density and desired ship turnaround time.

How does a screw ship unloader minimize dust emission?

The primary reason for the excellent dust control is its fully enclosed design. The entire path of the material, from the intake point in the ship's hold to the final discharge, is contained within a sealed tube. This physical barrier prevents dust from escaping. Furthermore, the continuous and relatively slow movement of material, as opposed to the high-impact dropping in grab systems, significantly reduces the generation of dust clouds in the first place.

Is a screw unloader better than a grab unloader?

It's not a matter of one being universally "better," but rather which is more suitable for the specific application. This is the core of the screw conveyor vs grab ship unloader decision. A screw unloader is superior for dust-sensitive environments, for preserving material quality, and for achieving high, continuous efficiency on compatible materials. A grab unloader offers unmatched versatility, able to handle almost any solid material and thoroughly clean a ship's hold. The choice depends on the primary material, environmental regulations, and operational priorities.
